7.2 kW – 11 kW – 22 kW
techtron EVC Type 2 EV Charging Cable Range
Choose options
Trusted Assurance
UK Standards Compliant
EU Standard Certified
EU Compliant
Global Safety Verified
Safety Approved
EVC Range
The Right Power. The Right Reach. Wherever You Charge.
<<<<< DRAG IMAGE TO CONTROL >>>>>
Key Features
7.2, 11 & 22 kW Charging Ratings: Choose the cable rating that best matches your vehicle and compatible AC charging setup.
5 m or 10 m Cable Lengths: Choose the reach that best suits your driveway, garage or regular charging routine.
Type 2 to Type 2 Connectivity: Dependable connection between compatible Type 2 AC charging points and your EV or PHEV.
Home & Public AC Charging: Designed for convenient charging from compatible home wallboxes and public Type 2 AC charging points.
Type 2 & CCS2 Vehicle Compatibility: Suitable for Type 2 and CCS2-equipped vehicles for AC charging through the Type 2 inlet.
Premium Hard Carry Case: Protects and stores your charging cable in a dedicated premium case, ready for every journey.
IP65-Rated Connectors: Built for dependable everyday use with strong protection against dust and water ingress.
Durable TPU Cable Construction: UV, oil and abrasion-resistant construction helps withstand repeated handling and outdoor use.
10,000+ Connection Cycles: Engineered for at least 10,000 mating cycles to support dependable long-term use.
Silver-Plated Copper Contacts: Premium contact construction supports a reliable electrical connection and lasting durability.
Flame-Retardant Construction: Built with UL94 V-0 rated materials to add an extra level of protection and reassurance during everyday charging.
Wide Operating Temperature Range: Engineered to operate from −35°C to +50°C across demanding seasonal conditions.
POWER
CABLE RATED FOR
7.2 • 11 • 22 kW
CONNECTOR TYPE
AC CHARGING
TYPE 2 → TYPE 2
CABLE LENGTH
CHOICE OF
5 m • 10 m
PREMIUM CARRY CASE
HARD-SHELL STORAGE
PROTECTED & READY
IP65 Connectors
TPU Cable
10,000+ Cycles
Silver-Plated Contacts
Type 2 / CCS2
Flame Retardant
Home & Public
−35°C to +50°C
Product Description
Make every charge feel effortless with the techtron® EVC Type 2 Charging Cable Range, engineered to bring greater freedom, flexibility and confidence to everyday EV charging. Whether you are connecting at home or charging while you are out, cables rated for 7.2 kW, 11 kW or 22 kW charging and available in 5 m or 10 m lengths let you choose the charging capacity and reach that best suit your setup. Dependable Type 2 to Type 2 connectivity makes the range ideal for home wallboxes and public Type 2 AC charging points, giving you a cable built to fit naturally into everyday EV ownership.
Premium engineering runs through every detail. IP65-rated connectors, tough UV, oil and abrasion-resistant TPU cable construction, silver-plated copper contacts and UL94 V-0 flame-retardant materials combine to create a charging cable designed for repeated real-world use. Compatible with Type 2 and CCS2-equipped EVs and PHEVs via the Type 2 inlet, the EVC Range delivers the durability, portability and everyday convenience to keep you ready to charge wherever the journey takes you.
The premium experience continues beyond the cable itself. Every EVC model is supplied in its own premium hard carry case, giving your charging cable a dedicated place to stay protected, organised and ready whenever you need it. Whether stored neatly at home or kept in the vehicle between journeys, it turns everyday cable storage into a cleaner, more considered part of EV ownership and helps the complete EVC package feel every bit as premium as the engineering inside it.
Made for Your Charge
The right rating. The right reach. A Type 2 charging cable that fits the way you charge.
Expand to Find Out More
Freedom to Connect
From your driveway to public charging, dependable Type 2 connectivity that gives every journey more flexibility.
> Public
> Office
> Home
Expand to Find Out More
Built for Everyday Life
Made to handle the realities of everyday EV charging, from daily driveway use to journeys further afield.
> Premium Engineering
Expand to Find Out More
An EV charging cable is handled, connected, disconnected, coiled, carried and stored again and again, so durability matters every bit as much as compatibility. The techtron® EVC Type 2 EV Charging Cable Range is engineered around that everyday reality, combining IP65-Rated Connectors with a high-performance TPU Cable Jacket designed to resist UV exposure, oil and abrasion. The result is a robust, flexible Type 2 charging cable built to cope confidently with repeated use at home and when charging away.
That durability continues through the details you may never have to think about. Each EVC connector is engineered for at least 10,000 mating cycles, while an operating temperature range of −35°C to +50°C gives the cable the resilience to perform across demanding seasonal conditions. From winter mornings and everyday driveway charging to regular handling on longer journeys, EVC is designed to stay ready for the routine of real EV ownership.
- IP65-Rated Connectors: Strong protection against dust ingress and water splashes helps make the EVC Range suitable for everyday use across home driveways and public charging environments.
- Durable TPU Cable Construction: High-performance thermoplastic polyurethane provides resistance to UV exposure, oil and abrasion, helping protect the cable against everyday wear and environmental exposure.
- 10,000+ Connection Cycles: Engineered for at least 10,000 mating cycles, supporting the repeated plugging and unplugging that comes with long-term EV ownership.
- −35°C to +50°C Operating Range: Designed to perform across a wide range of temperatures, giving you greater confidence through changing seasons and demanding everyday conditions.
Premium Protection
Premium storage that keeps your Type 2 charging cable protected, organised and ready for wherever you charge next.
>
>
>
Expand to Find Out More
Confident Connection
Premium materials and precise electrical performance, engineered into every Type 2 connection.
> Type 2 to Type 2 Connection
Expand to Find Out More
Every charge depends on the quality of the connection behind it. The techtron® EVC Type 2 Charging Cable Range combines silver-plated copper contacts, copper conductors, heat-resistant thermoplastic connector construction and UL94 V-0 flame-retardant materials with tightly controlled electrical characteristics. With ≤0.5 mΩ contact resistance, ≥1000 MΩ insulation resistance and ≥2000 V AC dielectric strength, the engineering beneath the surface is designed to support dependable, repeatable AC charging and lasting confidence every time you connect.
- Silver-Plated Copper Contacts: Premium contact construction helps provide a dependable electrical connection while adding resistance to corrosion for long-term everyday use.
- Copper Conductor Construction: Carefully specified copper conductors form the electrical core of every EVC cable, with conductor configuration matched to the cable’s charging rating.
- Low Contact Resistance: Rated at ≤0.5 mΩ, helping maintain a consistent electrical connection through the connector interface.
- High Insulation Resistance: ≥1000 MΩ insulation resistance provides strong electrical separation within the cable construction.
- High Dielectric Strength: Engineered to withstand ≥2000 V AC, adding further technical reassurance to the cable’s electrical design.
- Flame-Retardant Construction: UL94 V-0 rated materials add another layer of reassurance to a Type 2 charging cable engineered for regular everyday use.
Specifications
- Charging & Electrical
- Interface Type: Type 2 to Type 2
- Vehicle Compatibility: Type 2 and CCS2-equipped EVs and PHEVs for AC charging via the Type 2 inlet
- Rated Input Frequency: 50/60 Hz
- Charging Level: Level 2
- EVC7 Rated Power: 7.2 kW
- EVC7 Voltage Rating: 230 V AC
- EVC7 Current Rating: 32 A, Single Phase
- EVC11 Rated Power: 11 kW
- EVC11 Voltage Rating: 400 V AC
- EVC11 Current Rating: 16 A, Three Phase
- EVC22 Rated Power: 22 kW
- EVC22 Voltage Rating: 400 V AC
- EVC22 Current Rating: 32 A, Three Phase
- Portable: Yes
- Installation: No fixed installation required
- Design & Construction
- Available Cable Lengths: 5 m / 10 m
- EVC7 Cable Diameter: 13 mm (0.51 in)
- EVC11 Cable Diameter: 13 mm (0.51 in)
- EVC22 Cable Diameter: 16.5 mm (0.65 in)
- Cable Jacket: TPU with UV, oil and abrasion resistance
- Charging Point Connector: Type 2
- Vehicle Connector: Type 2
- EVC7 Conductor System: 5-core, L / N / PE / CP / PP
- EVC7 Conductor Size: Approx. 6 mm² (≈10 AWG) copper

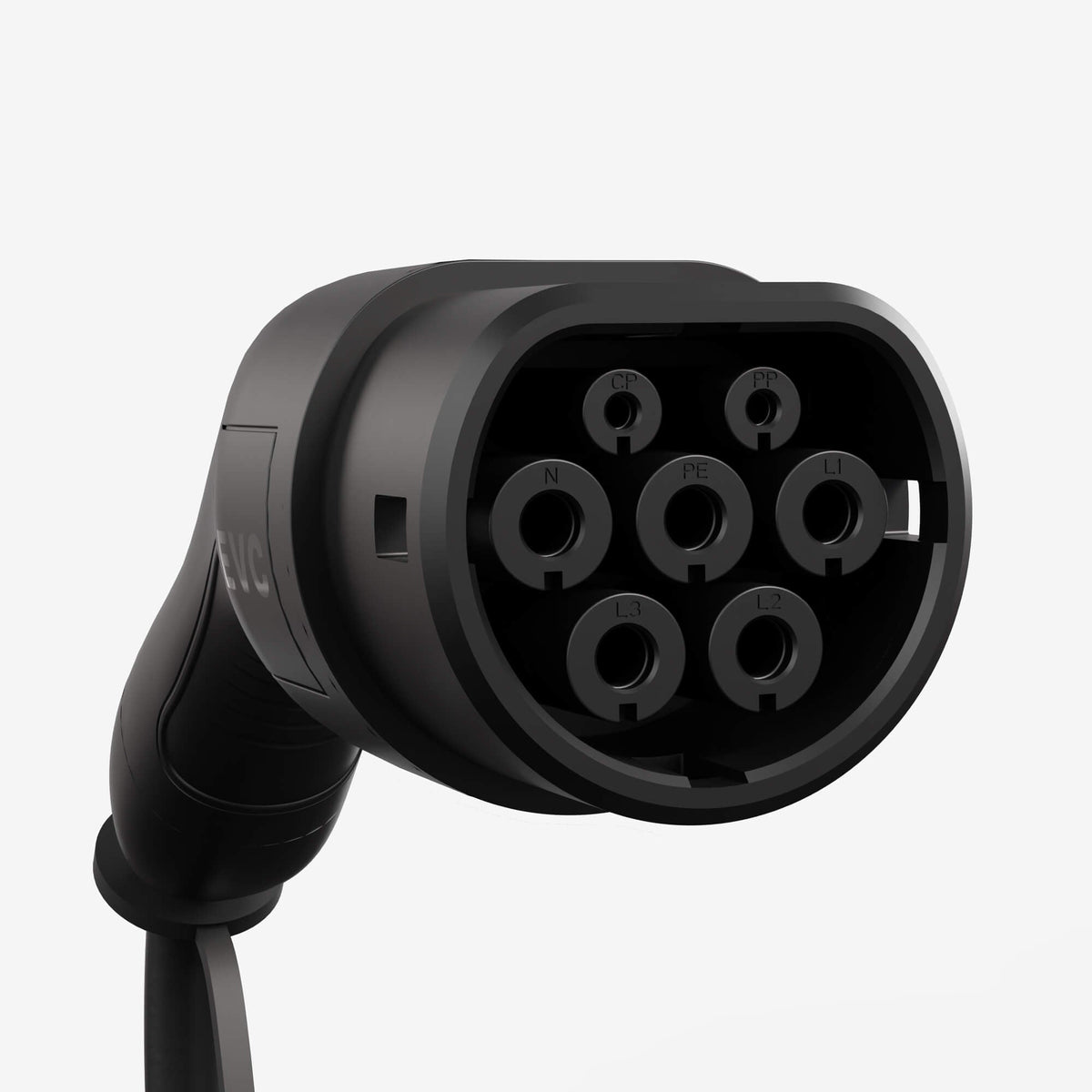

- EVC11 Conductor System: 7-core, L1 / L2 / L3 / N / PE / CP / PP
- EVC11 Conductor Size: Approx. 2.5 mm² (≈14 AWG) copper
- EVC22 Conductor System: 7-core, L1 / L2 / L3 / N / PE / CP / PP
- EVC22 Conductor Size: Approx. 6 mm² (≈10 AWG) copper
- Connector Material: Heat-resistant thermoplastic with silver-plated copper contacts
- Contact Durability: ≥10,000 mating cycles
- Finish & Branding
- LithoGeniX®: techtron® exclusive in-house print solution
- Cable Finish: Premium techtron® branded finish
- Protection
- Connector Protection Rating: IP65
- Insulation Resistance: ≥1000 MΩ
- Dielectric Strength: ≥2000 V AC
- Contact Resistance: ≤0.5 mΩ
- Flame Retardancy: UL94 V-0
- Operating Temperature: −35°C to +50°C (−31°F to 122°F)
- Operating Humidity: 5–95% non-condensing
- Maximum Operating Altitude: ≤2000 m (6562 ft)
- Dimensions & Weight
- EVC7 5M Net Weight: 2.1 kg (4.63 lb)
- EVC7 10M Net Weight: 3.6 kg (7.94 lb)
- EVC11 5M Net Weight: 1.9 kg (4.19 lb)
- EVC11 10M Net Weight: 3.2 kg (7.05 lb)
- EVC22 5M Net Weight: 3.0 kg (6.61 lb)
- EVC22 10M Net Weight: 5.5 kg (12.13 lb)
- 5 m EVA Carry Case: 350 × 300 × 110 mm (13.78 × 11.81 × 4.33 in)
- 10 m EVA Carry Case: 460 × 360 × 120 mm (18.11 × 14.17 × 4.72 in)
- 5 m Inner Box: 368 × 118 × 363 mm (14.5 × 4.6 × 14.3 in)
- 10 m Inner Box: 492 × 128 × 400 mm (19.4 × 5.0 × 15.7 in)
- 5 m Outer Box: 378 × 128 × 383 mm (14.9 × 5.0 × 15.1 in)
- 10 m Outer Box: 502 × 138 × 410 mm (19.8 × 5.4 × 16.1 in)
- EVC7 5M Gross Weight: 3.2 kg (7.05 lb)
- EVC7 10M Gross Weight: 4.7 kg (10.36 lb)
- EVC11 5M Gross Weight: 3.0 kg (6.61 lb)
- EVC11 10M Gross Weight: 4.6 kg (10.14 lb)
- EVC22 5M Gross Weight: 4.1 kg (9.04 lb)
- EVC22 10M Gross Weight: 6.6 kg (14.55 lb)
- Warranty
- Warranty Period: Up to 12 months / 1 year
- Certifications & Compliance
- Certifications: CE / UKCA / RoHS
- Type 2 Connector Standard: EN IEC 62196-2 / BS EN 62196-2
- EV Charging Cable Standards: EN IEC 62893-1 / EN IEC 62893-2 / EN IEC 62893-3
- Additional Cable Standard: EN 50620
- Low Voltage Directive: 2014/35/EU
- RoHS Standard: EN IEC 63000:2018
- Restricted Substance Testing: IEC 62321
- RoHS Directives: 2011/65/EU / (EU) 2015/863
Ideal For / Areas of Application
Designed to Adapt to Everyday EV Charging: The techtron® EVC Type 2 Charging Cable Range combines portable Type 2 to Type 2 connectivity, a choice of 5 m or 10 m cable lengths and compatibility with Type 2 and CCS2-equipped EVs and PHEVs, giving drivers greater flexibility across the places they charge most.
- Home Wallbox Charging: Connect to compatible Type 2 home wallboxes for convenient everyday AC charging at home.
- Public Type 2 AC Charging: Carry your EVC for use with compatible untethered public Type 2 AC charging points when charging away from home.
- Driveway Charging: Durable cable construction and IP65-rated connectors support regular everyday charging in typical home driveway environments.
- EV & PHEV Charging: Compatible with Type 2 and CCS2-equipped electric and plug-in hybrid vehicles for AC charging through the Type 2 inlet.
- Travel & Portable Charging: The supplied premium EVA hard carry case makes it easier to store, transport and keep your charging cable organised between journeys.
- Everyday Charging: Engineered for repeated connection, handling and storage, providing a dependable Type 2 charging cable for regular day-to-day EV ownership.
Safety & Compliance
The techtron® EVC Type 2 Charging Cable Range is designed and manufactured to meet recognised electrical safety, charging cable and environmental compliance requirements, combining robust connector protection, flame-retardant materials and certified Type 2 charging standards for dependable everyday use.
Certifications & Compliance:
- CE: Compliant with EN IEC 62196-2, EN IEC 62893-1, EN IEC 62893-2, EN IEC 62893-3 and Directive 2014/35/EU (Low Voltage Directive).
- UKCA: Compliant with applicable BS EN 62196-2, BS EN IEC 62893-1, BS EN IEC 62893-2, BS EN IEC 62893-3 and BS EN 50620 requirements.
- EN 50620 Charging Cable Standard: Manufactured in accordance with recognised electric vehicle charging cable requirements covering construction, insulation, flexibility, mechanical durability and temperature resistance.
- RoHS Compliant: Meets EN IEC 63000:2018 and IEC 62321, together with Directive 2011/65/EU and (EU) 2015/863 requirements restricting hazardous substances.
- IP65-Rated Connectors: Engineered with protection against dust and water ingress for dependable everyday charging use.
- UL94 V-0 Flame-Retardant Materials: Connector construction uses flame-retardant materials rated to UL94 V-0 for additional safety and reassurance.
- Electrical Protection: Engineered with ≥1000 MΩ insulation resistance, ≥2000 V AC dielectric strength and ≤0.5 mΩ contact resistance to support dependable electrical performance.
